These SQLCipher packages provide full database encryption for Apple applications. The pre-compiled binaries are easily imported into an Xcode project to be linked to an application. This provides the quickest integration and fastest application builds.

SQLCipher for Apple is "commercial edition" software that can be purchased directly from the Zetetic Store. Licensed software is delivered immediately upon payment.

Commercial packages include SQLCipher.xcframework which is built for:

• iOS devices (arm64)
• iOS simulators (arm64 -- Apple Silicon, x86_64)
• Mac Catalyst (arm64 -- Apple Silicon, x86_64)
• macOS (arm64 -- Apple Silicon, x86_64)
• tvOS (arm64)
• tvOS simulators (arm64 -- Apple Silicon, x86_64)
• watchOS (arm64, arm64_32, armv7k)
• watchOS simulators (arm64 -- Apple Silicon, x86_64)
• visionOS (arm64)
• visionOS simulators (arm64 -- Apple Silicon, x86_64)

The applicable platform's Framework will be chosen from the SQLCipher.xcframework and included in your target application based on which platform(s) it's targeting.

You will only be able to use platforms which you've purchased licenses for. Attempting to use a platform which you're not licensed for you will result in an SQLITE_AUTH(23) error

Running Packaged Examples

When running on a physical Apple device, you must enable code signing within Signing & Capabilities of the Example Target. To do this select a Team and check Automatic Code Signing to generate a Signing Certificate

The remainder of this document provides a practical example of how to integrate SQLCipher in an Xcode project.

These tutorials assume that Xcode is already installed and that basic applications are already setup.

Integration Options

The SQLCipher for Apple commercial package includes:

1. SQLCipher.xcframework
2. SQLCipher.swift Swift Package (includes a binary target of SQLCipher.xcframework)

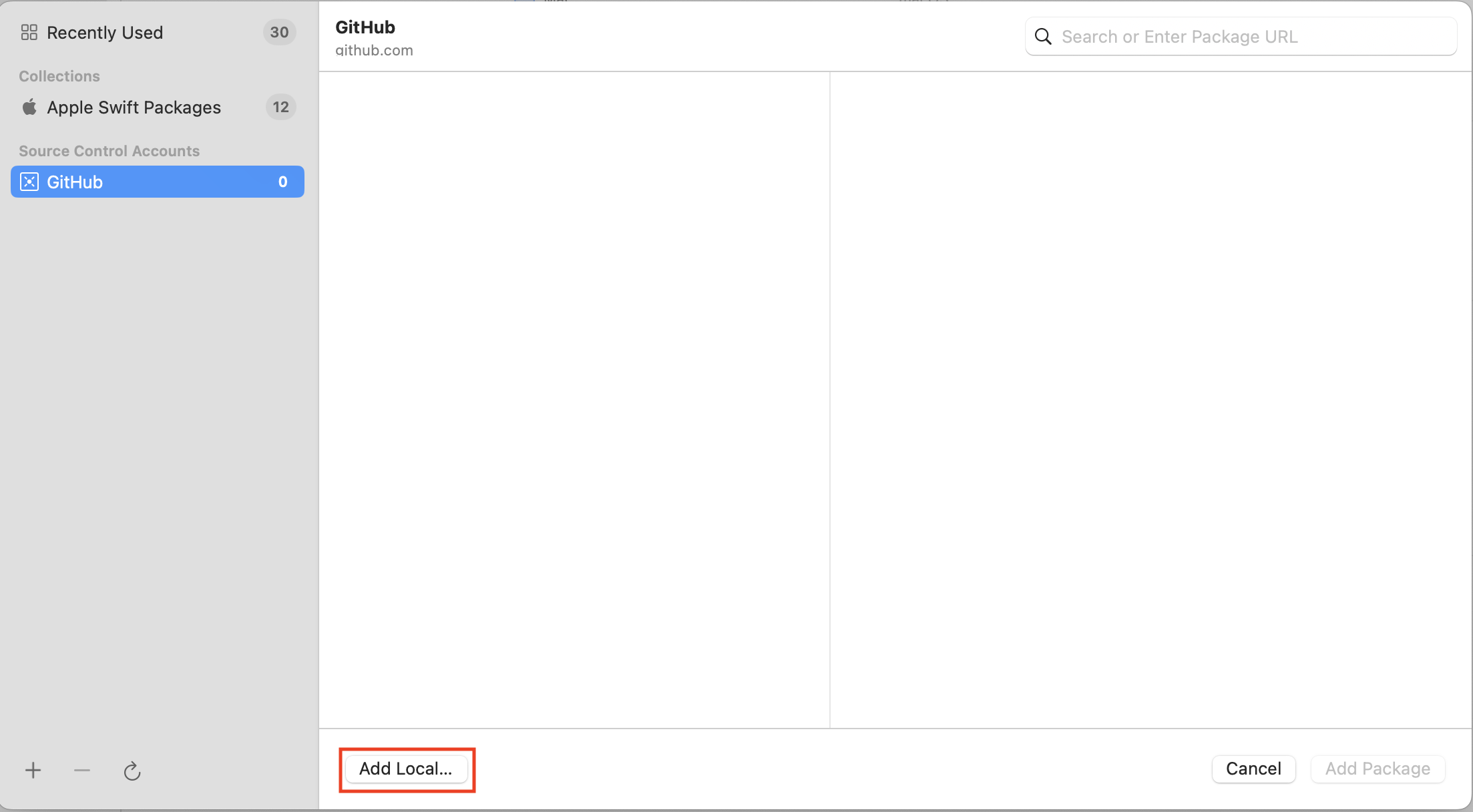

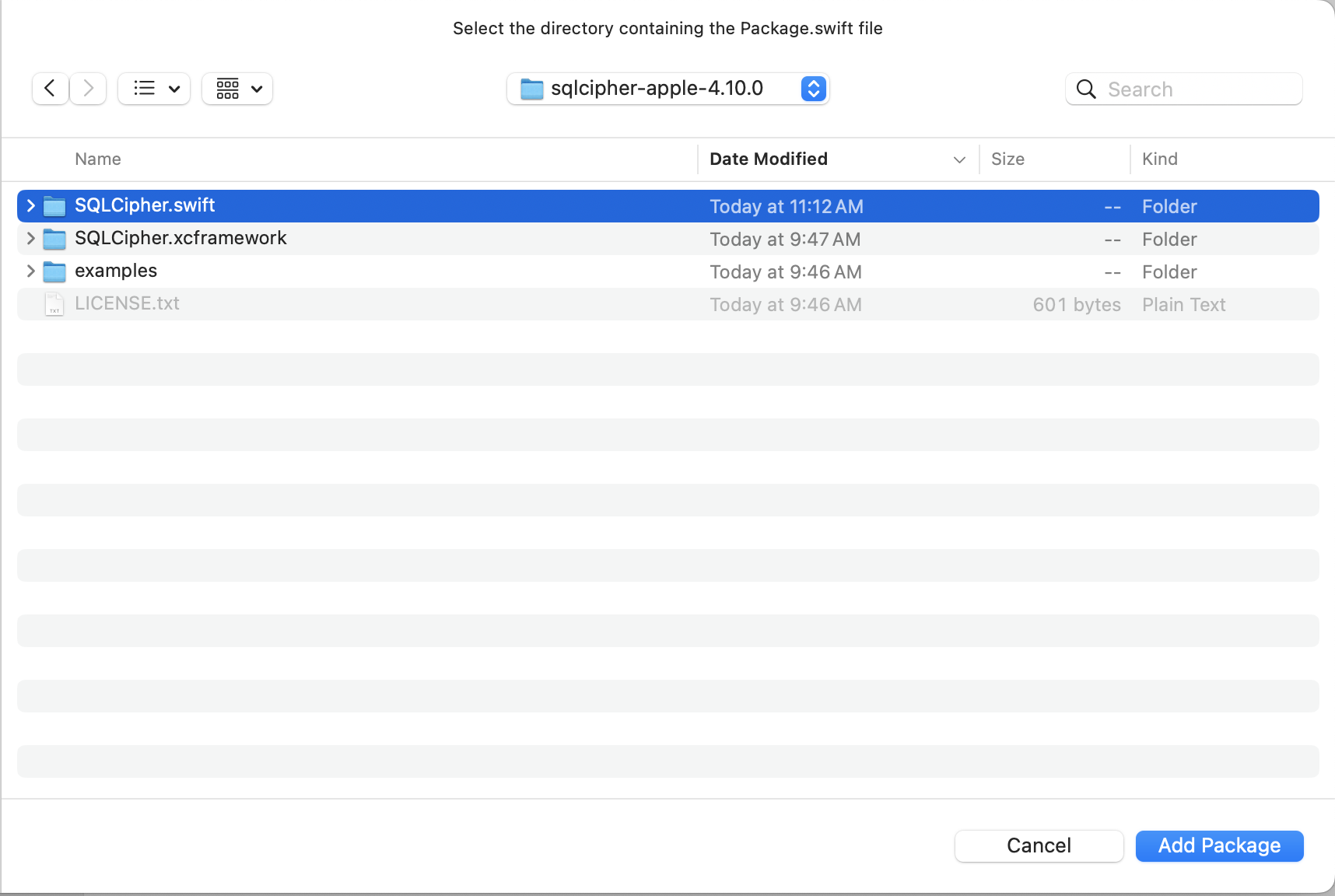

• Swift Package Integration

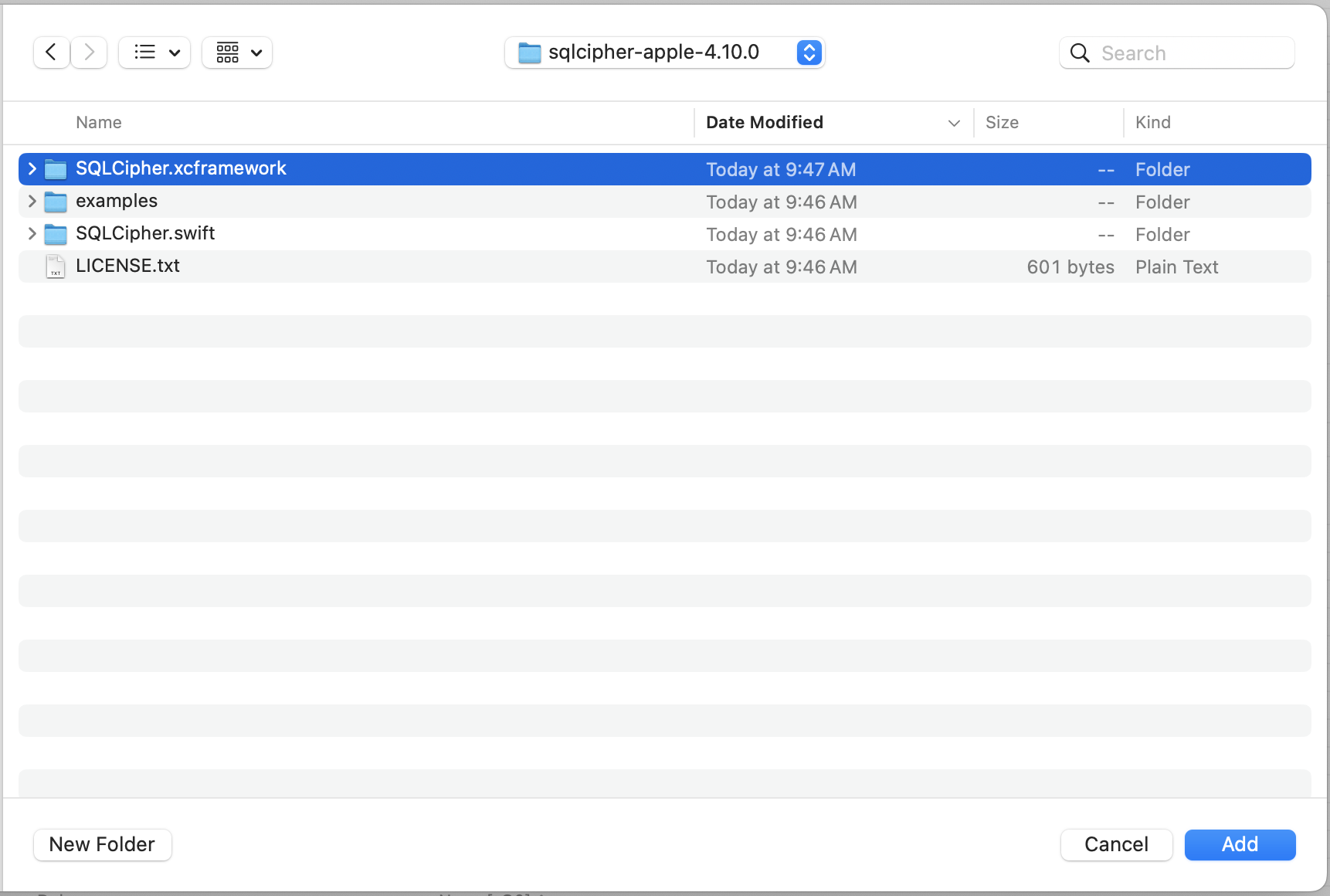

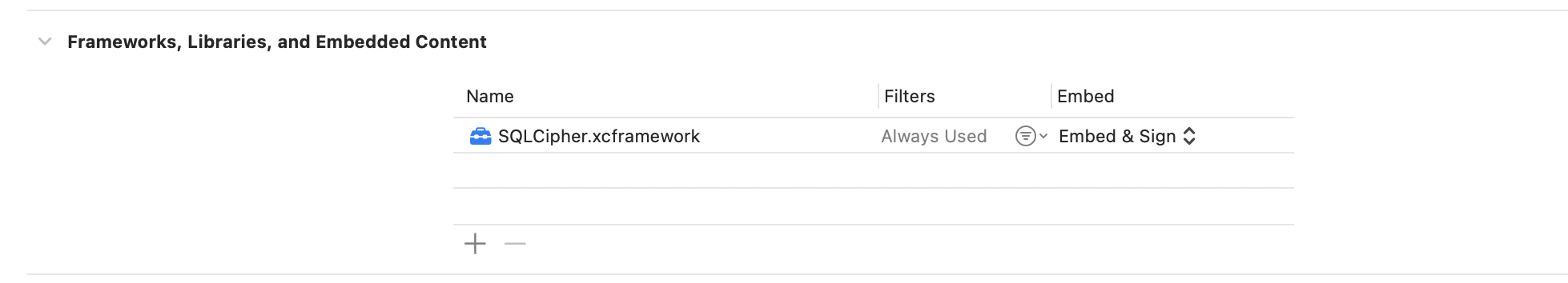

• SQLCipher.xcframework Integration

Integration Code

Now that the SQLCipher library is incorporated into the project you can start using the library immediately. Telling SQLCipher to encrypt a database is easy:

• Open the database
• Use the sqlite3_key function to provide key material. In most cases this should occur as the first operation after opening the database.
• Use PRAGMA cipher_license to apply your license code
• Run a query to verify the database can be opened (i.e. by querying the schema)
• As a precautionary measure, run a query to ensure that the application is using SQLCipher on the active connection

SQLCipher Import Statements

When using Swift, import the SQLCipher module

import SQLCipher

When using Objective-C, import the SQLCipher umbrella header

#import <SQLCipher/SQLCipher.h>

Objective-C Example

NSString *databasePath = [[NSSearchPathForDirectoriesInDomains(NSDocumentDirectory, NSUserDomainMask, YES) objectAtIndex:0]
                          stringByAppendingPathComponent: @"sqlcipher.db"];
sqlite3 *db;
sqlite3_stmt *stmt;
BOOL sqlcipherValid = NO;
if (sqlite3_open([databasePath UTF8String], &db) == SQLITE_OK) {
    const char* key = [@"BIGSecret" UTF8String];
    sqlite3_key(db, key, (int)strlen(key));

    // When using Commercial or Enterprise packages you must call PRAGMA cipher_license with a valid License Code.
    // Failure to provide a license code will result in an SQLITE_AUTH(23) error.
    // Trial licenses are available at https://www.zetetic.net/sqlcipher/trial/
    NSString *licenseQuery = [NSString stringWithFormat:@"PRAGMA cipher_license='%@';", @"### LICENSE CODE HERE ###"];
    sqlite3_exec(db, [licenseQuery UTF8String], NULL, NULL, NULL);
    int rc = sqlite3_exec(db, "SELECT count(*) FROM sqlite_master;", NULL, NULL, NULL);
    if (rc == SQLITE_OK) {
        rc = sqlite3_prepare_v2(db, "PRAGMA cipher_version;", -1, &stmt, NULL);
        if (rc == SQLITE_OK) {
            rc = sqlite3_step(stmt);
            if (rc == SQLITE_ROW) {
                const unsigned char *ver = sqlite3_column_text(stmt, 0);
                if (ver != NULL) {
                    sqlcipherValid = YES;
                    // password is correct (or database is initialized), and verified to be using sqlcipher
                    NSLog(@"cipher_version = %s", ver);
                }
            }
            sqlite3_finalize(stmt);
        }
    }
    sqlite3_close(db);
}

Swift Example

Here's an example of using the API SQLCipher provides in Swift 5:

var rc: Int32
var db: OpaquePointer? = nil
var stmt: OpaquePointer? = nil
let password: String = "correct horse battery staple"
rc = sqlite3_open(":memory:", &db)
if (rc != SQLITE_OK) {
    let errmsg = String(cString: sqlite3_errmsg(db))
    print("Error opening database: \(errmsg)")
    return
}
rc = sqlite3_key(db, password, Int32(password.utf8CString.count))
if (rc != SQLITE_OK) {
    let errmsg = String(cString: sqlite3_errmsg(db))
    print("Error setting key: \(errmsg)")
}

// When using Commercial or Enterprise packages you must call PRAGMA cipher_license with a valid License Code.
// Failure to provide a license code will result in an SQLITE_AUTH(23) error.
// Trial licenses are available at https://www.zetetic.net/sqlcipher/trial/
rc = sqlite3_exec(db, "PRAGMA cipher_license = '### LICENSE CODE HERE ###';", nil, nil, nil)
if (rc != SQLITE_OK) {
    let errmsg = String(cString: sqlite3_errmsg(db))
    print("Error with cipher_license: \(errmsg)")
}
rc = sqlite3_prepare(db, "PRAGMA cipher_version;", -1, &stmt, nil)
if (rc != SQLITE_OK) {
    let errmsg = String(cString: sqlite3_errmsg(db))
    print("Error preparing SQL: \(errmsg)")
}
rc = sqlite3_step(stmt)
if (rc == SQLITE_ROW) {
    if let cipherVersion = sqlite3_column_text(stmt, 0) {
        print("cipher_version: \(String(cString: cipherVersion))")
    } else {
        print("Not SQLCipher")
    }

} else {
    let errmsg = String(cString: sqlite3_errmsg(db))
    print("Error retrieiving cipher_version: \(errmsg)")
}
sqlite3_finalize(stmt)
sqlite3_close(db)

Key Derivation and Raw Keys

In most cases SQLCipher uses PBKDF2, a salted and iterated key derivation function, to obtain the encryption key. Alternately, an application can tell SQLCipher to use a specific binary key in blob notation (note that SQLCipher requires exactly 256 bits of key material), i.e.

PRAGMA key = "x'2DD29CA851E7B56E4697B0E1F08507293D761A05CE4D1B628663F411A8086D99'";

Once the key is set SQLCipher will automatically encrypt all data in the database! Note that if you don't set a key then SQLCipher will operate identically to a standard SQLite database.

Testing and Verification

There are a number of ways that you can verify SQLCipher is working as expected in your applications before its release to users.

After the application is wired up to use SQLCipher, take a peek at the resulting data files to make sure everything is in order. An ordinary SQLite database will look something like the following under hexdump. Note that the file type, schema, and data are clearly readable.

% hexdump -C plaintext.db
00000000  53 51 4c 69 74 65 20 66  6f 72 6d 61 74 20 33 00  |SQLite format 3.|
00000010  04 00 01 01 00 40 20 20  00 00 00 04 00 00 00 00  |.....@  ........|
...
000003b0  00 00 00 00 24 02 06 17  11 11 01 35 74 61 62 6c  |....$......5tabl|
000003c0  65 74 32 74 32 03 43 52  45 41 54 45 20 54 41 42  |et2t2.CREATE TAB|
000003d0  4c 45 20 74 32 28 61 2c  62 29 24 01 06 17 11 11  |LE t2(a,b)$.....|
000003e0  01 35 74 61 62 6c 65 74  31 74 31 02 43 52 45 41  |.5tablet1t1.CREA|
000003f0  54 45 20 54 41 42 4c 45  20 74 31 28 61 2c 62 29  |TE TABLE t1(a,b)|
...
000007d0  00 00 00 14 02 03 01 2d  02 74 77 6f 20 66 6f 72  |.......-.two for|
000007e0  20 74 68 65 20 73 68 6f  77 15 01 03 01 2f 01 6f  | the show..../.o|
000007f0  6e 65 20 66 6f 72 20 74  68 65 20 6d 6f 6e 65 79  |ne for the money|

Fire up the SQLCipher application in simulator and look for the application database files under ~/Library/Developer/CoreSimulator/Devices/<Instance ID>/data/Containers/Data/Application/<Application ID>/Documents/. Try running hexdump on the application database. With SQLCipher the output should looks completely random, with no discerning characteristics at all.

% hexdump -C sqlcipher.db
00000000  1b 31 3c e3 aa 71 ae 39  6d 06 f6 21 63 85 a6 ae  |.1<..q.9m..!c...|
00000010  ca 70 91 3e f5 a5 03 e5  b3 32 67 2e 82 18 97 5a  |.p.>.....2g....Z|
00000020  34 d8 65 95 eb 17 10 47  a7 5e 23 20 21 21 d4 d1  |4.e....G.^# !!..|
...
000007d0  af e8 21 ea 0d 4f 44 fe  15 b7 c2 94 7b ee ca 0b  |..!..OD.....{...|
000007e0  29 8b 72 93 1d 21 e9 91  d4 3c 99 fc aa 64 d2 55  |).r..!...<...d.U|
000007f0  d5 e9 3f 91 18 a9 c5 4b  25 cb 84 86 82 0a 08 7f  |..?....K%.......|
00000800

Other sensible testing steps include:

• Attempt to open a database with a correct key and verify that the operation succeeds
• Attempt to open a database with an incorrect key and verify that the operation fails
• Attempt to open a database without any key, and verify the operation fails
• Programtically inspect the first 16 bytes of the database file and ensure that it contains random data (i.e. not the string SQLite Format 3\0)
